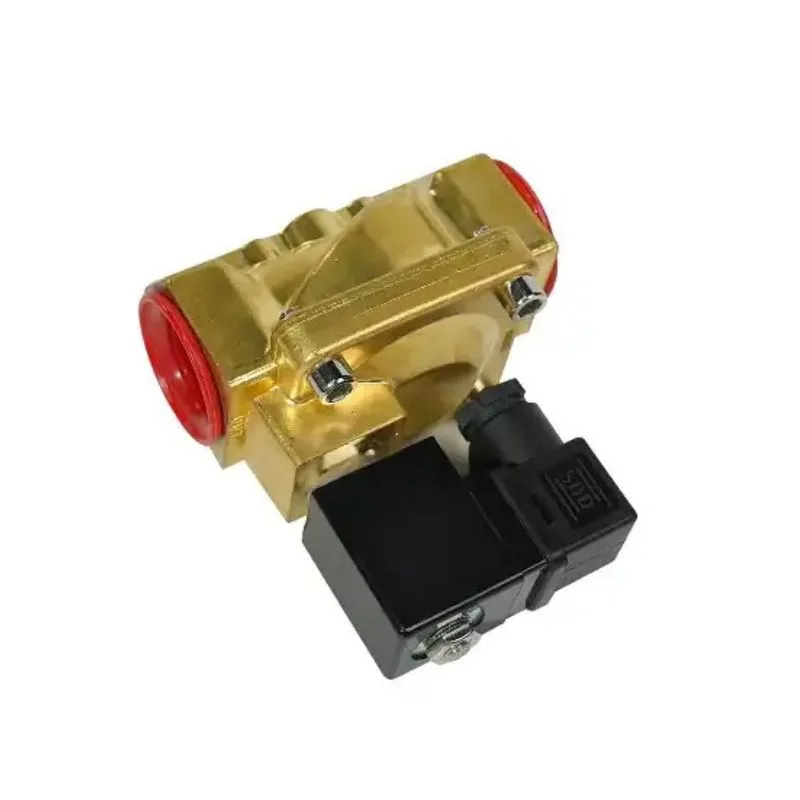

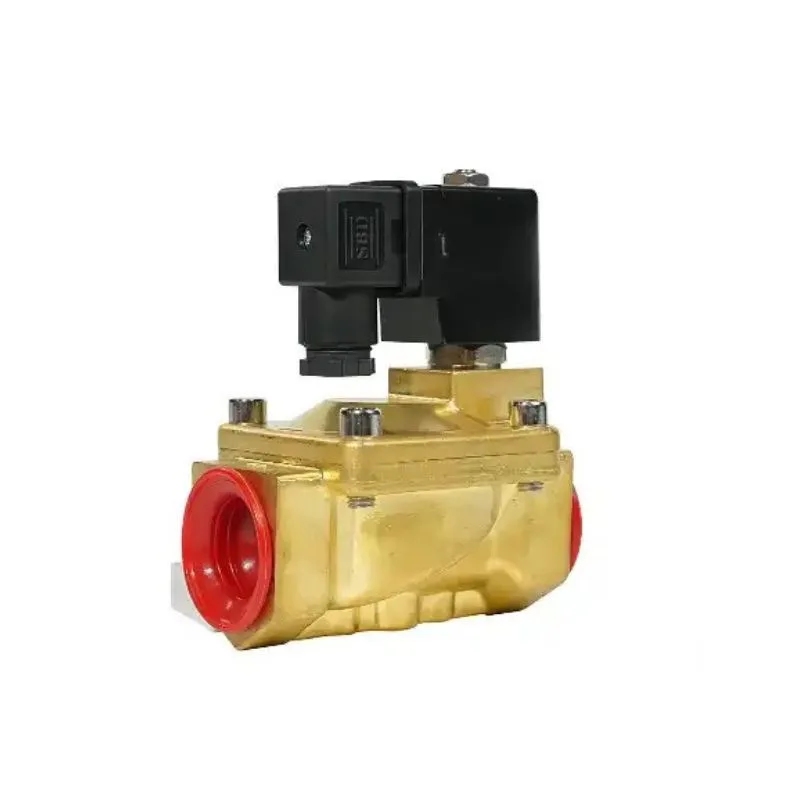

The diaphragm solenoid valve is designed for water or liquid-based applications, providing automatic or remote control over pipelines carrying water, oil, and other liquids.
Price on request
We quote to your specification, quantity and delivery schedule.
Product details
The diaphragm solenoid valve is designed for water or liquid-based applications, providing automatic or remote control over pipelines carrying water, oil, and other liquids.
Built for reliable operation, this valve ensures precise regulation of various working mediums, making it ideal for industrial and commercial fluid systems.
| Name | 2-way large diameter pilot operated (Copper) diaphragm solenoid valve (normally closed) |
| Brand Name | YEKE |
| Control mode | normal close |
| Coil grade | SM Series coil |
| Voltage | AC24V/110V/220V/230V/240V,50/60HZ,DC24V/12V,+10%fluctuation is allowed |
| Sealing material | NBR,VITON,EPDM |
| Body material | wrought brass |
| Connection diameter | 3/8",1/2"3/4",1",1 1/4",1 1/2"，2” |
| Environment temperature | 0℃~65℃ |
| Medium temperature | 0℃~130℃ |
| Installation | In the direction of the arrow on the valve, install it horizontally, the coil is upward, and the medium of oil particles and impurities, please install a filter of more than 60 mesh |
| Working pressure | 20Kgf/cm² |
Need a variant, or unsure which model fits?
Send us the operating conditions and we will confirm the specification before you order.
